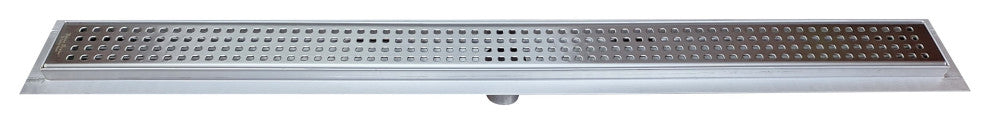

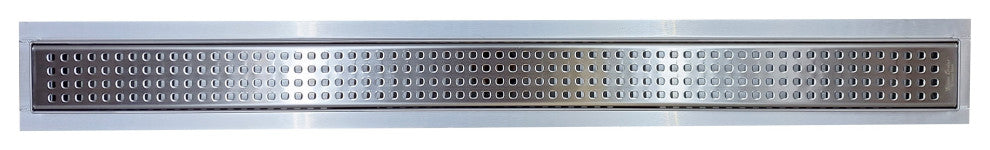

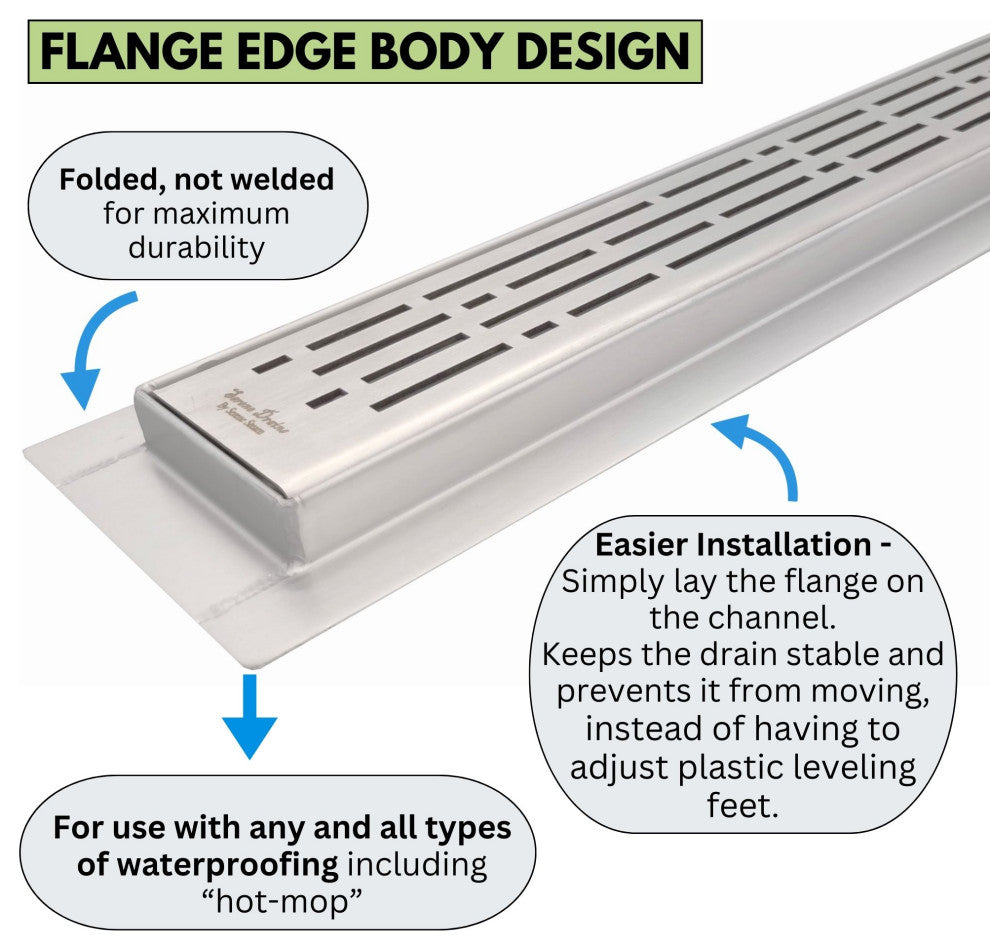

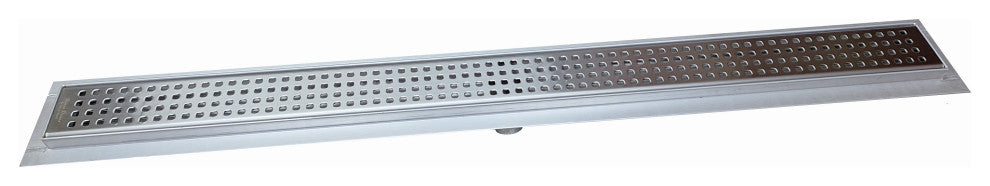

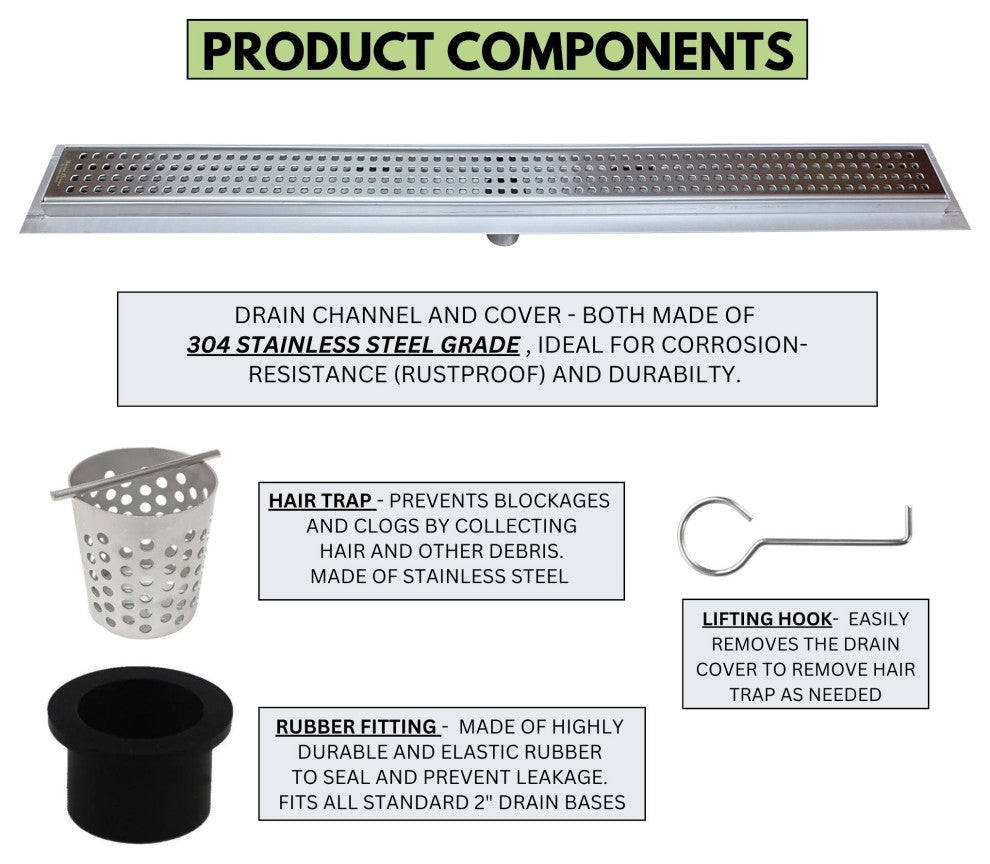

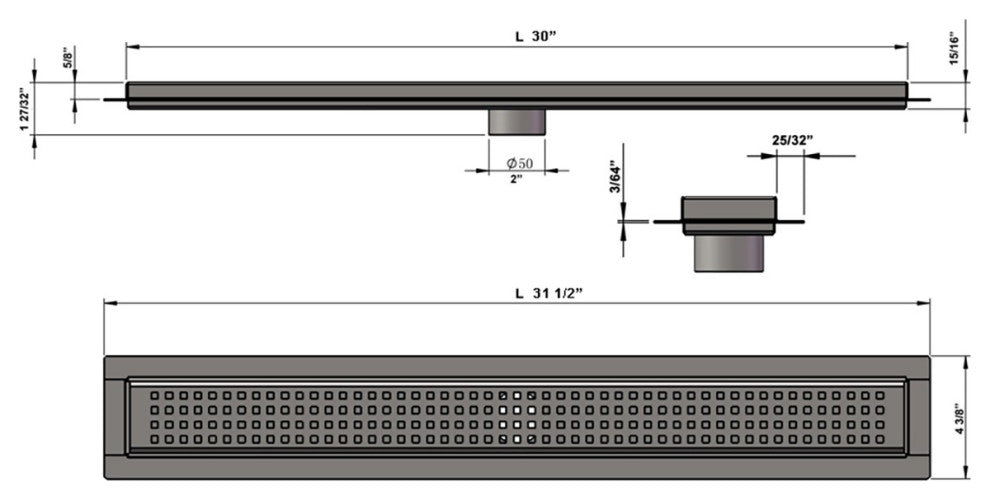

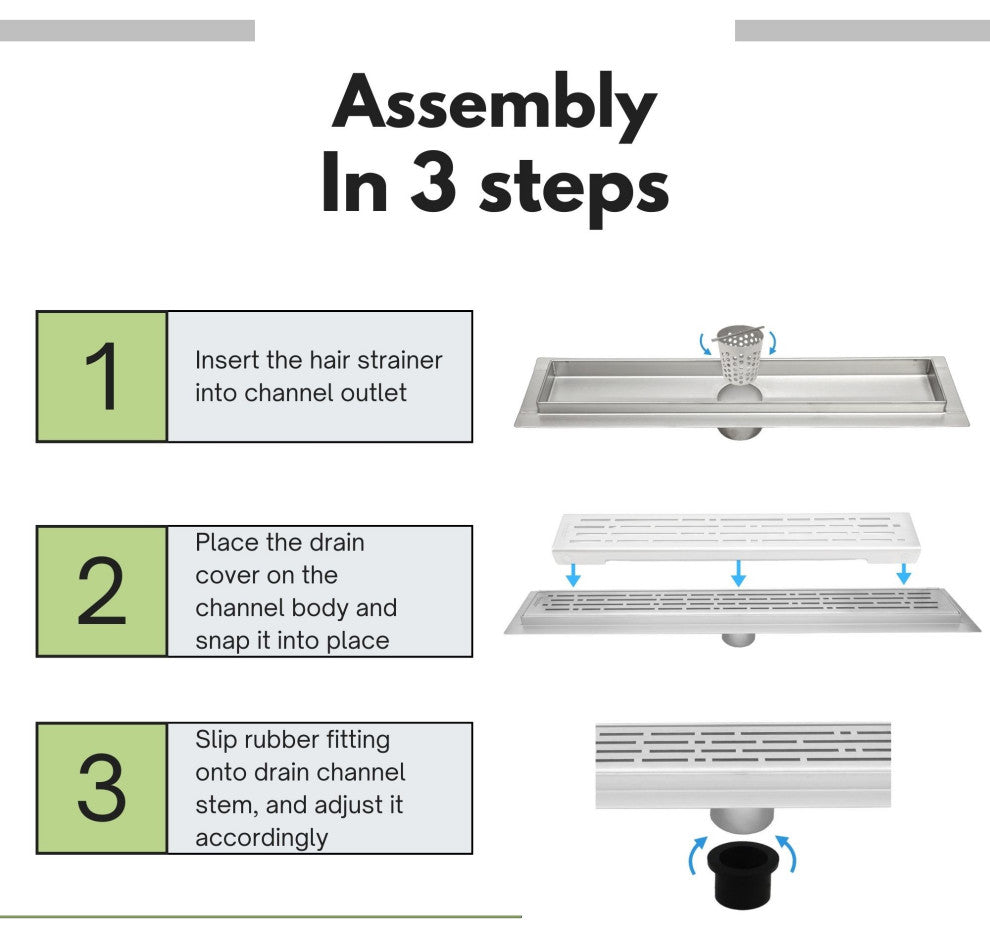

SereneDrains Linear Shower Drains - Traditional Square - Brushed Stainless SteelIncludesLinear Shower Drain Channel and Grate, Stainless Steel Hair Trap, Rubber Fitting and Grate Lifting Hook.Available Sizes (Approximate Dimensions)Length 16" (400mm), Intake 8.11 sq. in.Length 24" (600mm), Intake 12.59 sq. in.Length 30" (762mm), Intake 16.86 sq. in.Length 35.43" (900mm), Intake 20.02 sq. in.Length 39.37" (1000mm), Intake 22.35 sq. in.Length 47.25" (1200mm), Intake 26.68 sq. in.Length 59.05" (1500mm), Intake 34.26 sq. in.FeaturesHigh Quality MaterialsSereneDrains Linear Shower Drains are made of 16 Gauge SS304 Stainless Steel Flange and Channel. Brushed Steel Finish protects the Linear Shower Drain from corrosion & rust.Easy InstallationSereneDrains Shower Drains don"™t have leveling feet. This is much more stable and makes installation of the Linear Drain easy by simply allowing you to rest the Flange on the floor edge.Water and Leak ProofThe Flange of the Shower Floor Drain is designed for use with all waterproofing materials such as: "Hot-Mop", Liquid membranes, Sheet Membranes, Vinyl waterproofing etc.. Bodies are fully welded and leak tested prior to dispatch.Durable, Solid and Smooththe frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Linear Shower Drain a smooth touch to the feet. NO plastic parts.Flange Edge Body DesignFolded, not welded. For maximum durability.For use with any and all types of waterproofing. Including "hot-mopping".Easier installation. Simply lay the flange on the channel. Keeps the drain stable and prevents it from moving, instead of having to adjust plastic leveling feet.Wheelchair Access(ADA Compliant) & Barrier-free showers.Technical- Channel width: 2 3/4" (70 mm).- Flow rate: at entrance to shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).- Compatible with tiles up to 10mm depth (14mm lip).
