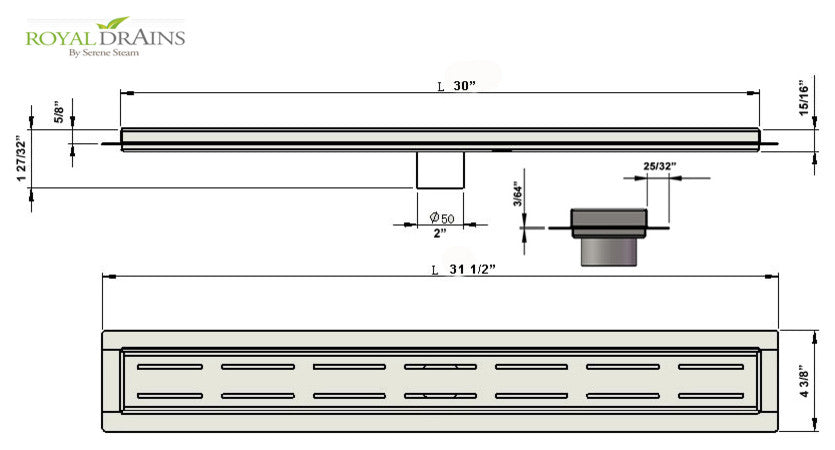

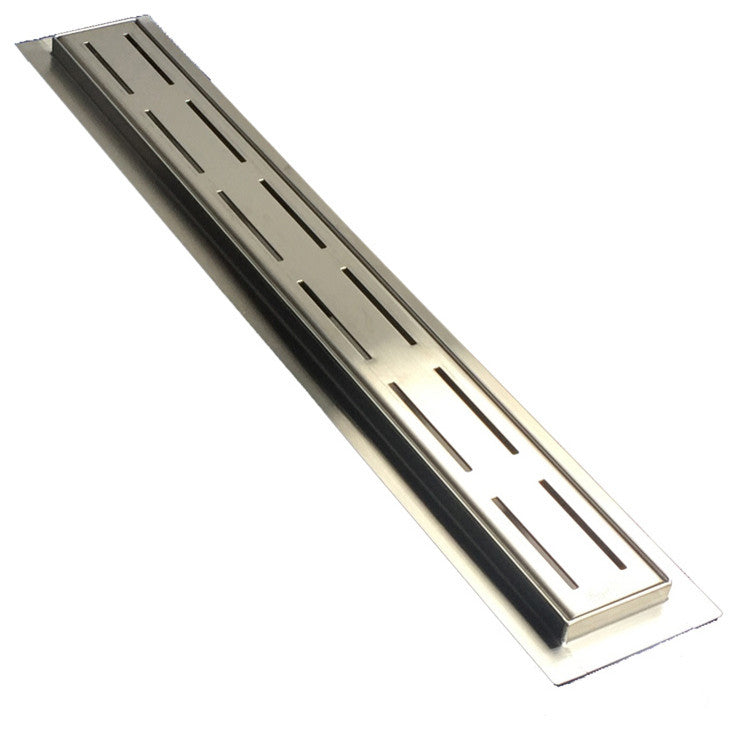

Royal Linear Shower Drain Broken Lane Style by Serene SteamLength 30" x 2 3/4" (732mm) Intake sq. in: 17.62COMPLETE SET - Channel Body, Stainless Steel grade, Drain Rubber Fitting, Waterproofing membrane sheet around the drain flange (not require but included)Optional: ABS or PVC CPE Membrane Fitting, Clad Flexible Coupling, Stainless Steel Hair Trap Approximate dimensions:Length 15 3/4" x 2 3/4" (400mm) Intake sq. in: 12.38Length 23 1/2" x 2 3/4" (600mm) Intake sq. in: 14.96Length 35 3/8" x 2 3/4" (900mm) Intake sq. in: 20.03Length 39 3/8" x 2 3/4" (1000mm) Intake sq. in: 21.12Length 47 1/4" x 2 3/4" (1200mm) Intake sq. in: 26.68Length 59" x 2 3/4" (1500mm) Intake sq. in: 31.67Square shape. It''s easier to cut tile to a square drain than to cut, nip and grind it to fit a round one.Superior Quality at an Affordable PriceQuality The shower channel Grade is grade 18 gauge 316 stainless steel. Bodies are fully welded and leak tested prior to dispatch.Flange Body Edge designed for use with any and all type of waterproofing, included and not limited "hot-mop" painted or liquid membranes, Sheet Membrane, Vinyl waterproofing etc..- 2" diameter central vertical outlet- Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).- Pre-Slope Channel- Channel width: 2 3/4" (70 mm)- Bodies are fully welded and leak tested prior to dispatch.- Electro polished finish.- Compatible with tiles up to 10mm depth (14mm lip)- 18 gauge 316 stainless steel grade- 2" diameter Central vertical outlet- Superior Quality- Easily maintained No Special CleaningSimple cuts are easily made, and waste little precious time. Royal drains are sized to match standard 1/2", 1", 2", and 4" tile without cutting. When cutting is needed, cuts are straight saw cuts. No grinding to match a radius. Consider how much easier glass mosaics will be to install.Superior Quality - Heavy Drain Grate - Minimal Grout Rim - Designer finishes
