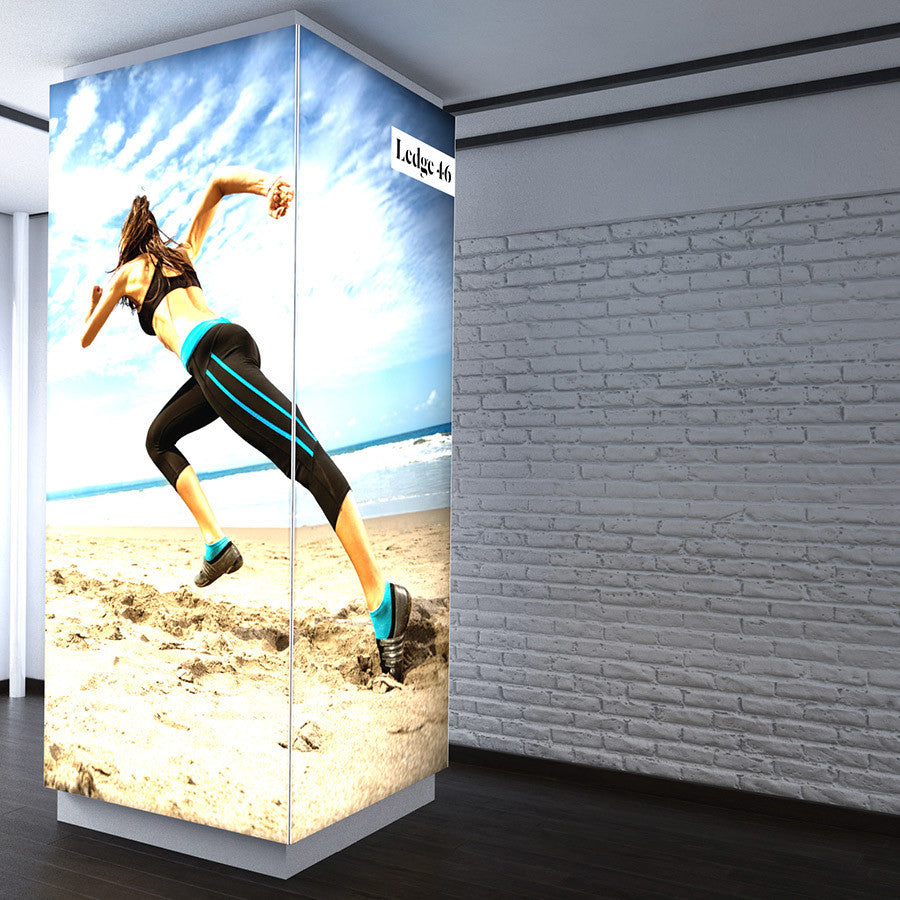

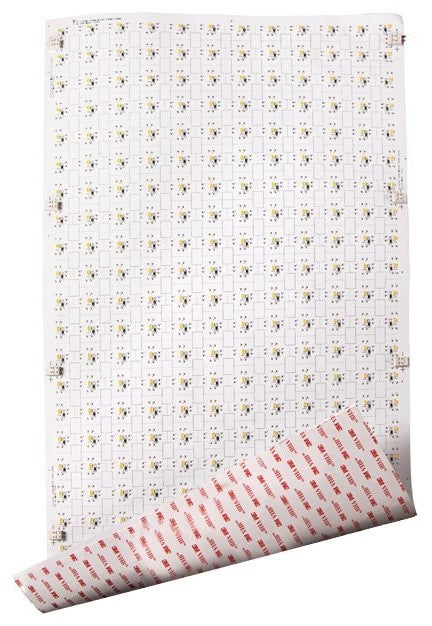

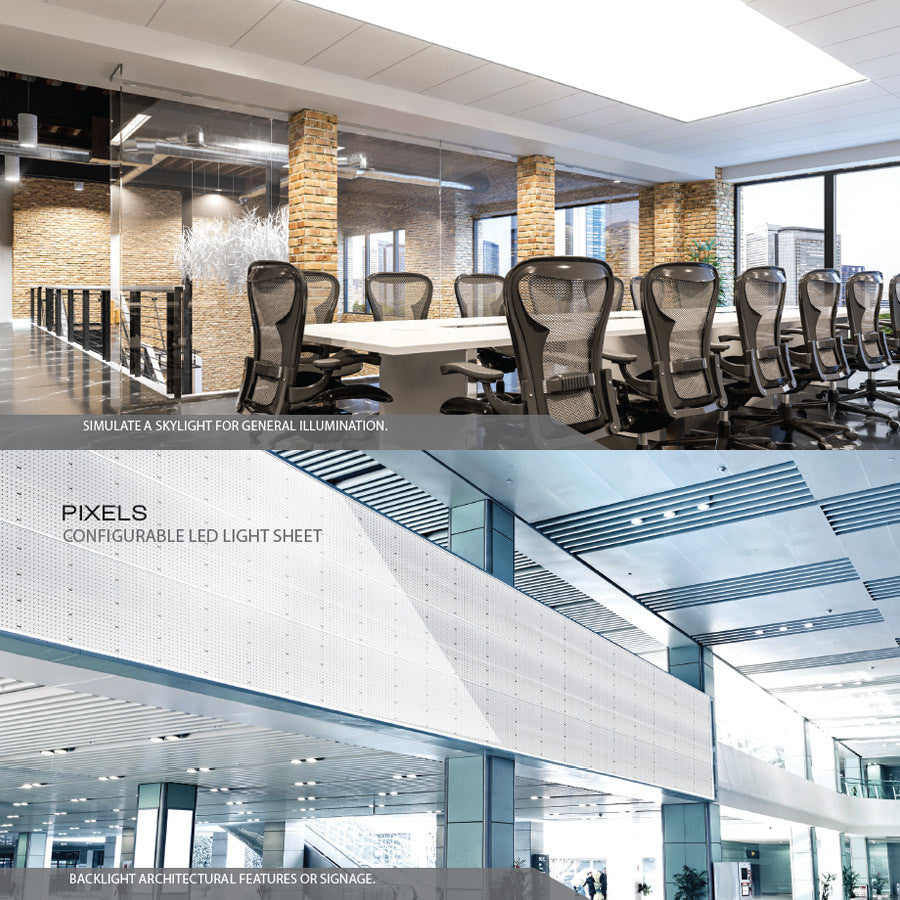

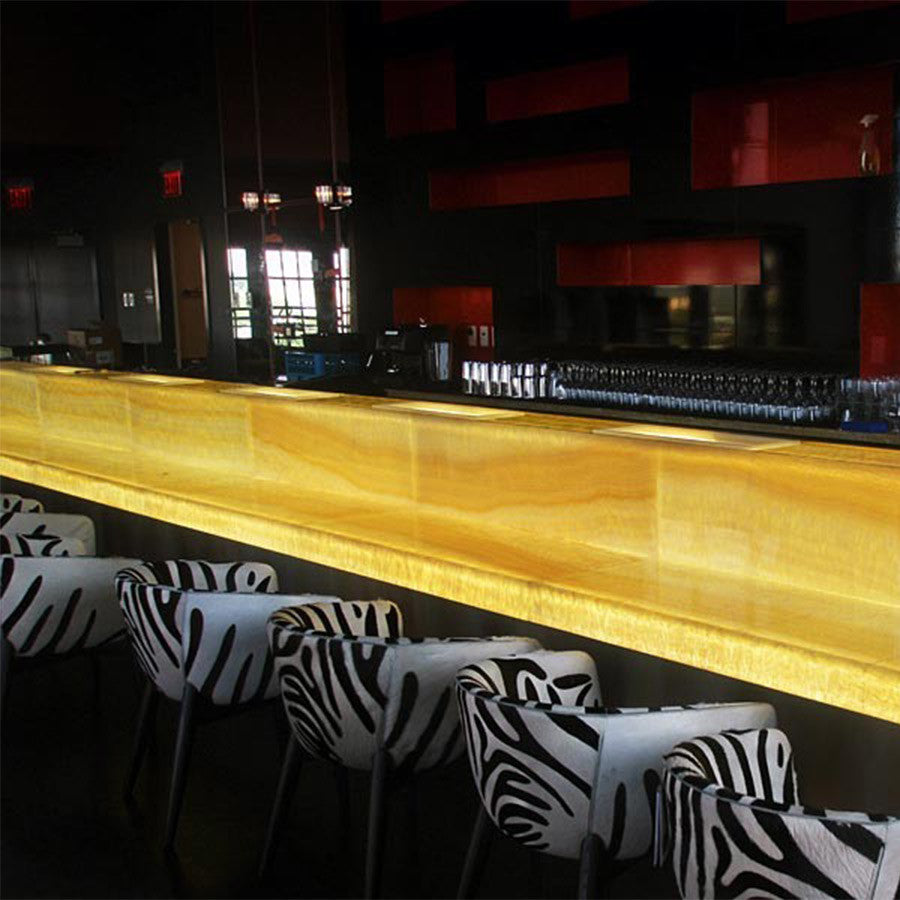

Pixels has revolutionized retail and architectural lighting. This frameless, ultra-thin 1/8in profile LED light sheet produces a bright and even light across its entire surface. Pixels can be used in the design, build, and installation of applications including graphics, translucent surfaces including countertops and receptions desks, walls, ceilings, floors, and shelving - the application possibilities are truly endless. Dynamic and flexible, Pixels can be cut in the field along dotted lines to create unique shapes that can be applied to flat or curved surfaces using a peel and stick 3M-construction adhesive or mounted to any surface with staples over open rectangles. Pixels is offered in a variety of CCT options ranging from 2700K-5000K and is available in 12x24in panels that can be connected trough jumper cables supplied for longer runs or large surfaces.

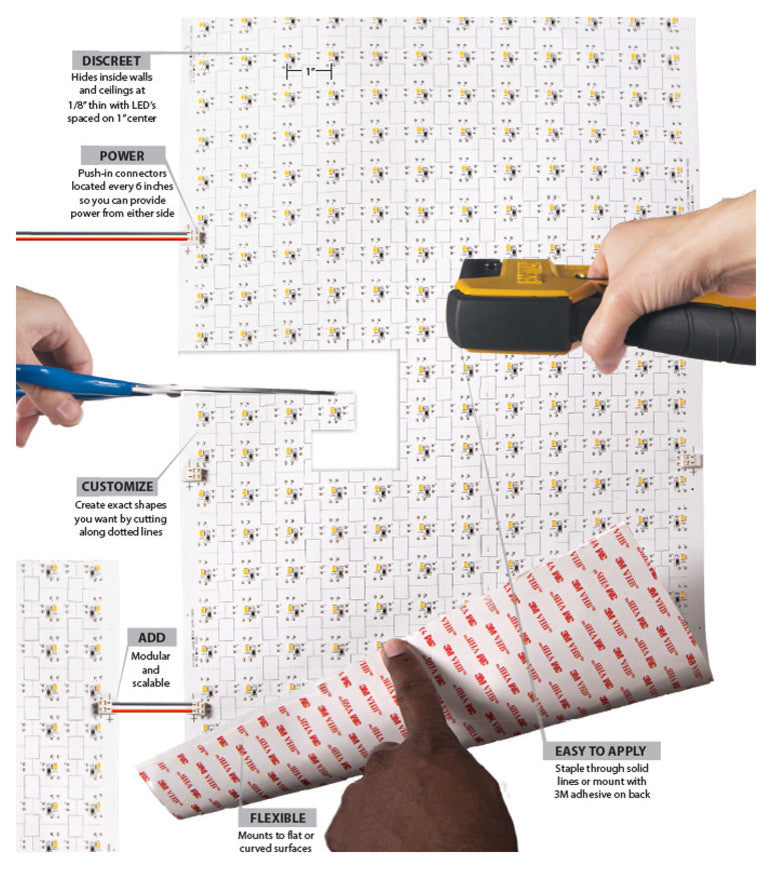

With a lightweight, ultra-thin 1/8in profile. May be field-cut vertically or horizontally, in unique shapes or around obstructions.
Powers easily by daisy chaining with integral push-in connectors or power from any square at soldering points provided.
3M-construction adhesive adheres to most surfaces (flat or curved), or open rectangles indicate where it can be stapled through.
Smooth and continuous dimming to 10% with a 0-10V dimmer. We recommend using the dimmer included with the power supply, part # EN-D24100-120-R.

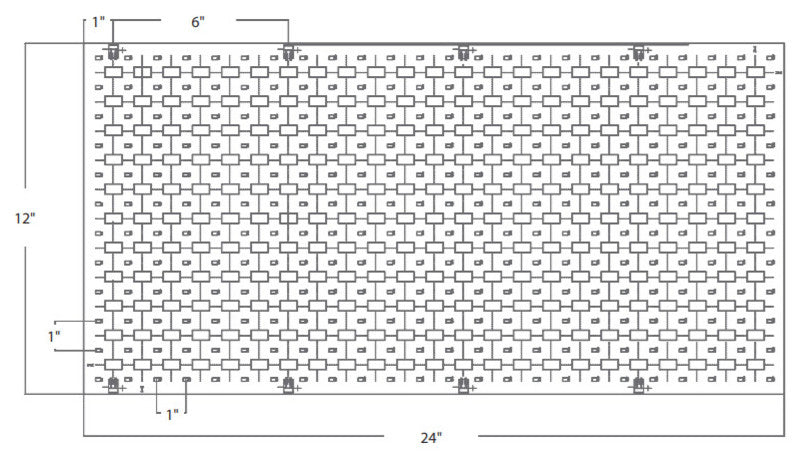

144 high powered LEDs/sq ft (1 inch pitch): Color Temperatures available: 2700K, 3000K, 3500K, 4000K, or 5000K, Rated Hours: 50,000, Voltage: 24VDC, Power 5W/ft or 10W/ft.
Standards: ETL, cETL Listed for damp locations, suitable for indoor use only.
