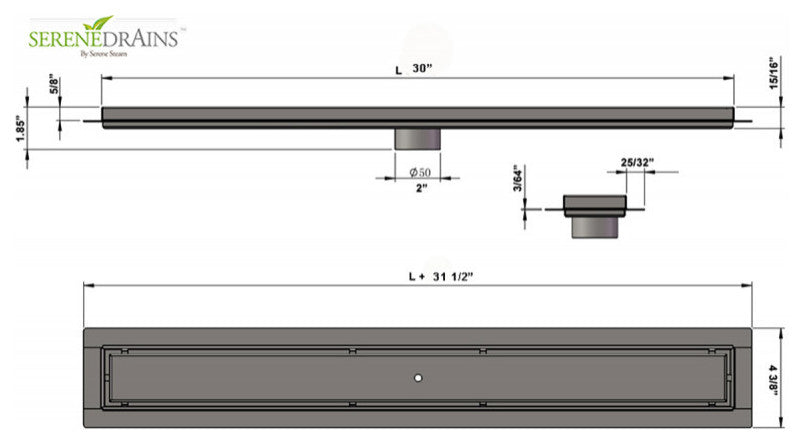

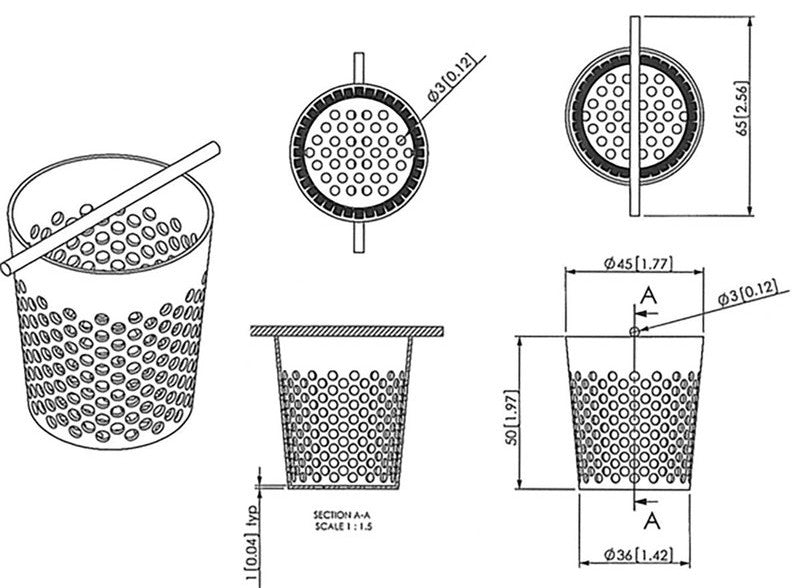

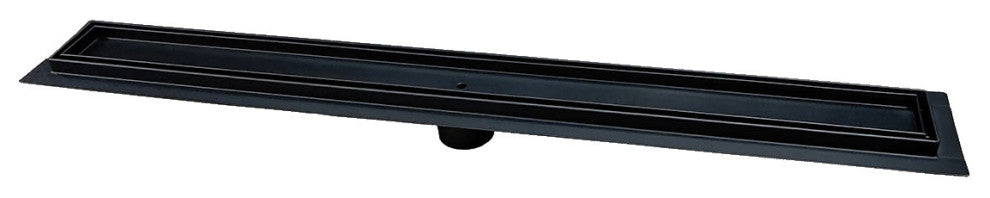

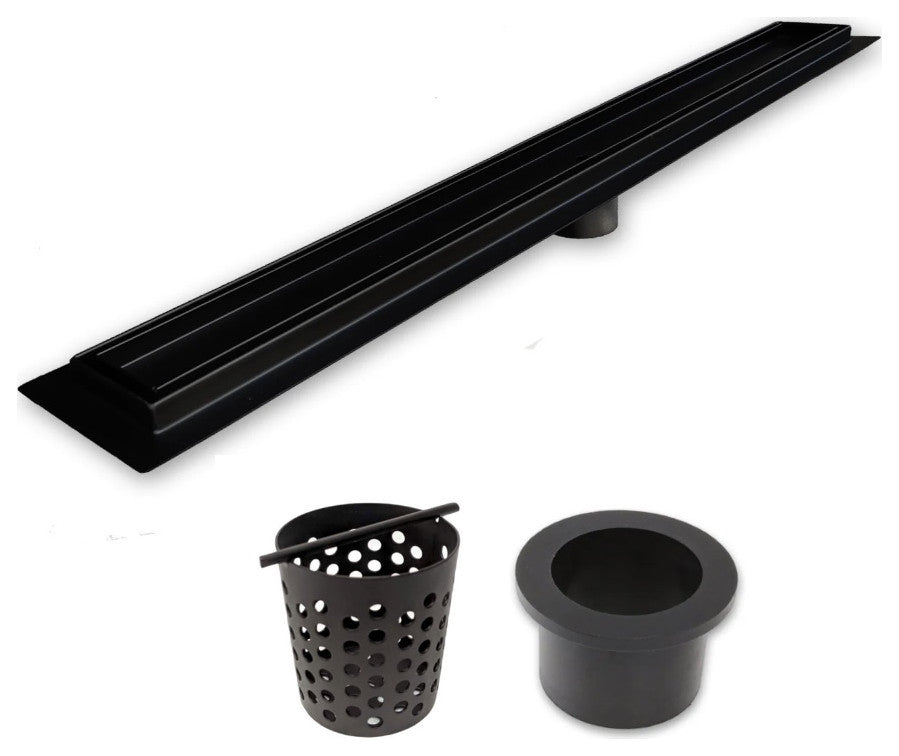

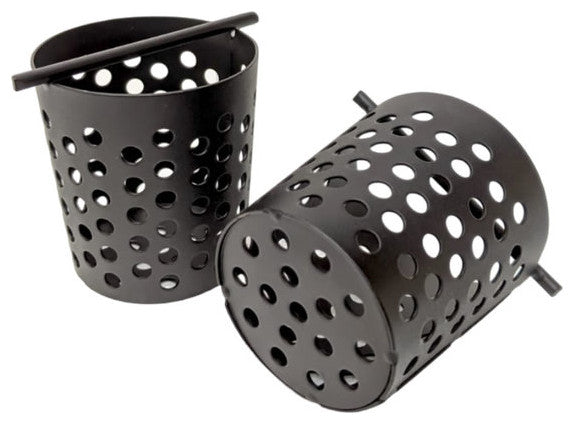

Stainless steel Matte Black Linear Drain with Black Hair Trap Set, Tile Insert Linear Shower Drain. Available in: 16", 24", 30", 36", 40", 48", 60". Linear drain can by bought separately (Visit Our Houzz Shop).Drain Incl: Stainless steel channel body and grate in matte black, puller key, waterproofing membrane sheet around the drain flange (not required but included), Black Hair Trap, Installation Instruction, rubber gasket. NOTE: Hair trap is a stainless steel Matte Black sieve/strainer that sits inside the 2" diameter outlet to collect hair and debris. Use of strainer will reduce the flow performance of the shower channel. Clean regularly.Product Info: The TILE INSERT shower drain is used to camouflage the drain with the same tile you are installing on the shower floor. High Quality Materials: the linear shower drain is made of 16 Gauge SS304 stainless steel flange, channel and grate. Brushed steel finish protects the linear shower drain from corrosion and rust. Water And Leak Proof: the flange of the shower floor drain is designed for use with all waterproofing materials such as: "Hot-Mop", liquid membranes, sheet membranes, vinyl waterproofing etc. Bodies are fully welded and leak tested prior to dispatch. Easy Installation: The shower drain doesn''t have leveling feet. This is much more stable and makes installation easy by simply allowing you to rest the Flange on the floor edge. Removable grate for easy cleaning of the Linear Drain. Durable, Solid and Smooth: the frame is rounded (folded, not welded). This creates a frame twice as strong and gives the Linear Shower Drain a smooth touch to the feet. NO plastic parts.Approximate Dimensions: Net Size 15" 3/4" x 2 3/4" (visible on floor) 400mm | Overall Size 17" 1/4" x 4 3/8" | Intake sq. in: 12.38. Net Size 23" 1/2" x 2 3/4" (visible on floor) 600mm | Overall Size 25.2" x 4 3/8" | Intake sq. in: 14.96. Net Size 30" x 2 3/4" (visible on floor) 762mm | Overall Size 31.57" x 4 3/8" | Intake sq. in: 17.62. Net Size 35" 3/8" x 2 3/4" (visible on floor) 900mm | Overall Size 37.01" x 4 3/8" | Intake sq. in: 20.03. Net Size 39" 3/8" x 2 3/4" (visible on floor) 1000mm | Overall Size 40.95" x 4 3/8" | Intake sq. in: 21.12. Net Size 47 1/4" x 2 3/4" (visible on floor) 1200mm | Overall Size 48.82" x 4 3/8" | Intake sq. in: 26.68. Net Size 59.05" x 2 3/4" (visible on floor) 1500mm | Overall Size 60.63" x 4 3/8" | Intake sq. in: 31.67.Applications: Shower and bath, kitchen, pools, balconies, hotel rooms, gym, spa etc. Perfect for wheelchair access and barrier-free showers (walk in floor plans).Features: Stainless steel Matte Black finish. Superior quality laser cut electro-polish finish. Bodies are fully welded and leak tested prior to dispatch. 2 Inch diameter central vertical outlet. Designed to be installed into any 2" shower drain flange. Compatible with tiles up to 10mm depth (14mm lip). Sized to match standard 1/2", 1", 2, and 4" tile without cutting. Pre-Slope channel. Channel width: 2 3/4" (70 mm). Drain grate is 16 gauge 304 stainless steel. Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s). Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc. Also available Tile Insert drain in Satin Gold and Brushed Nickle. Contact us with any questions. Quantity discount available.
