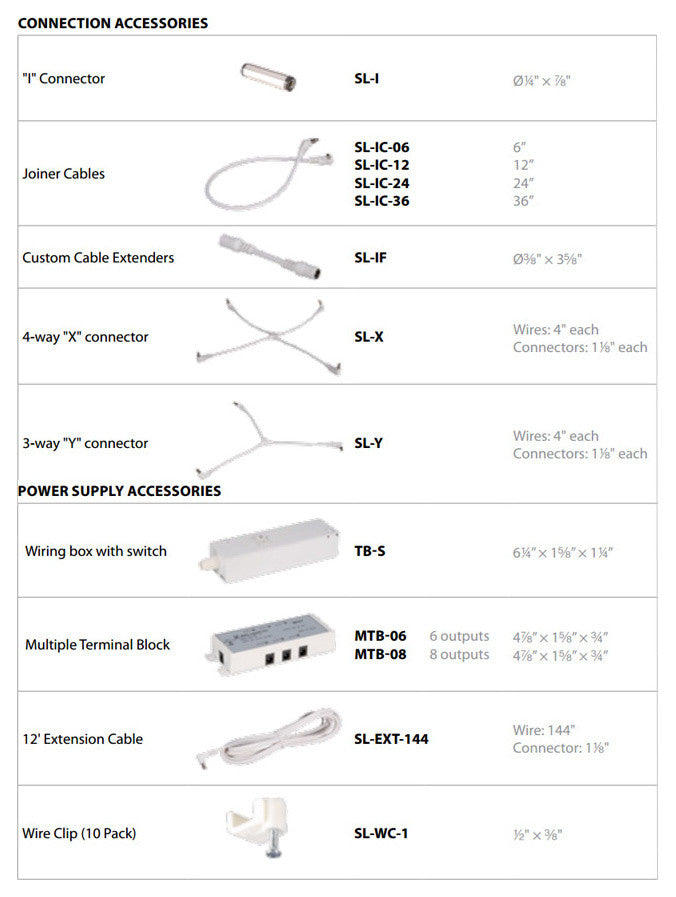

Connectors for WAC Lighting Line, Line 2.0, and Straight Edge under cabinet fixtures. I-connectors are used to join two fixtures for a seamless end to end connection. Jointer cables are used to join one fixture to another on a single power source, available in four sizes, 6in, 12in, 24in, and 36in. Use an SL-IF custom extender to create longer runs of joiner cables. Y and X connectors are used to create three-way and four-way connections. 144in extension cable is used to supply power to fixture from a far power supply.

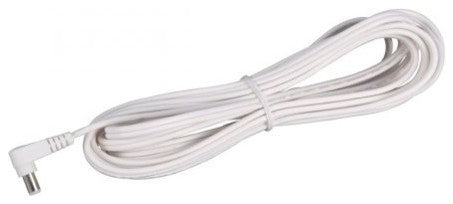

Use 144in extension cable for long runs between supply power to fixture.
Easy to install for power continuity.
To be used with WAC Lighting Line, Line 2.0, and Straight Edge under cabinet fixture.
One side is an open splice for power supply, the other has a quick connect jack for Line, Line 2.0 and Straight Edge fixture.
Connect up to a number of fixtures allowed by the power supply used. For example, 100Watt power supply can support 10 X 10Watt fixtures.
Standards: UL & cUL Listed for Damp Locations.
